Hadoop Concepts

CMPT 732, Fall 2023

Our Cluster

* * *

Hadoop Pieces

The major software components of a Hadoop cluster, and understanding the way our work get distributed among them requires a little background…

HDFS

The problem: store (GB, TB, PB of) data in the cluster.

HDFS stores (blocks of) files on different nodes, replicated to make the data more available and to handle disk failure.

The NameNode coordinates everything and keeps track of who has what data.

The DataNodes actually store the data blocks (with each block on multiple nodes).

YARN

The problem: use the compute resources (processors, memory) in the cluster to do work.

The ResourceManager tracks resources and jobs in the cluster.

The NodeManagers do actual compute work (and are also HDFS DataNodes).

YARN

The idea is that YARN will move a compute task to the data it's operating on: that's easier that moving the (possibly TB of data) to another node.

Moving Computation is Cheaper than Moving Data HDFS Architecture Guide

That's why DataNodes and NodeManagers are typically on the same computers: to get the compute happening beside the data.

(Simplified) Cluster Overview

Work on Hadoop

A program you write to run on Hadoop is an application which could send multiple jobs to the cluster.

Different types of tasks can run on YARN and first we will see…

MapReduce

The MapReduce model is a way to describe distributed parallel computation in a way that we can use for lots of problems, without having to do the message passing ourselves.

The MapReduce tool will be responsible for getting the computation done, as long as we express it in a way that fits the model.

MapReduce

Apache Hadoop provides an implementation of the MapReduce model that it can run on a YARN cluster.

From now on “MapReduce” will mean Hadoop MapReduce…

MapReduce Stages

Map: apply a map() function to each piece of input. Output key/value pairs.
Shuffle: collect map output with the same keys together on a node so we can…
Reduce: call a reduce() function on each key and each value that a mapper produced for that key. Produce the final output for that key.

MapReduce Stages

Map
Shuffle
Reduce

There can also be a step 1.5 Combiner: do reducer-like work on the data (on each node separately) to reduce the amount of data sent to the (expensive) shuffle.

Example: word count

Everybody's first example: count the number of times each word occurs in a collection of text files.

Map: for each “word” in the input, output the key/value pair (“word”, 1).
Shuffle: move all of the (“word”, \(n\)) pairs to the same node, and (“other”, \(n\)) to the same node, …
Reduce: Sum the values (the numbers) for each key (the words) to get a count of each word like: (“word”, 74), (“other”, 18), …

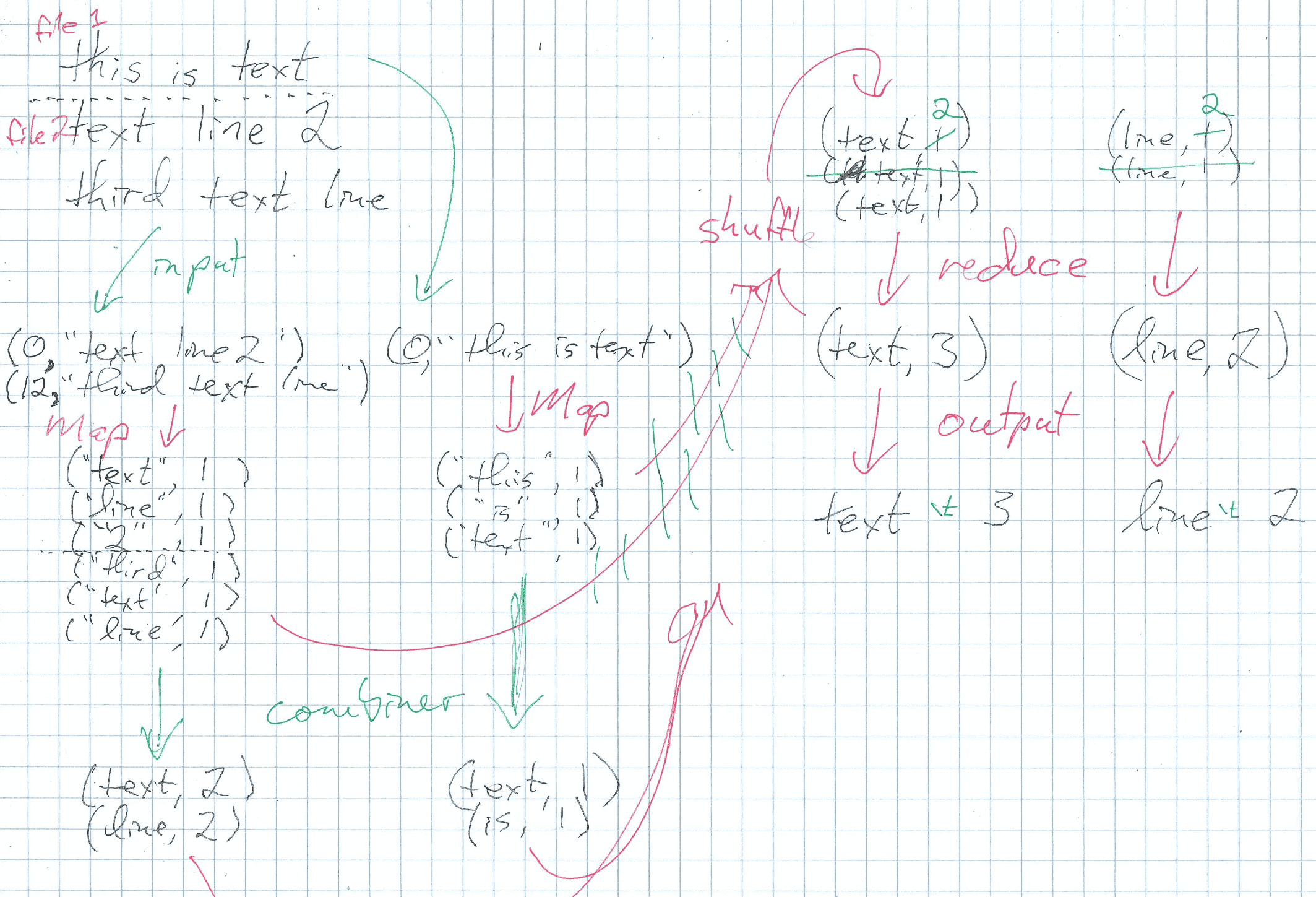

Whiteboard: Fall 2023

MapReduce Anatomy


public class WordCount extends Configured implements Tool {
  public static class TokenizerMapper
      extends Mapper<LongWritable, Text, Text, IntWritable>{
    private final static IntWritable one = new IntWritable(1);
    private Text word = new Text();

    @Override
    public void map(LongWritable key, Text value, Context context
        ) throws IOException, InterruptedException {
      StringTokenizer itr = new StringTokenizer(value.toString());
      while (itr.hasMoreTokens()) {
        word.set(itr.nextToken());
        context.write(word, one);
      }
    }
  }
⋮
}

MapReduce Anatomy


public class WordCount extends Configured implements Tool {
  ⋮
  public static class IntSumReducer
      extends Reducer<Text, IntWritable, Text, IntWritable> {
    private IntWritable result = new IntWritable();
    @Override
    public void reduce(Text key, Iterable<IntWritable> values,
        Context context) throws IOException, InterruptedException {
      int sum = 0;
      for (IntWritable val : values) {
        sum += val.get();
      }
      result.set(sum);
      context.write(key, result);
    }
  }
  ⋮
}

MapReduce Anatomy


public class WordCount extends Configured implements Tool {
  …@Override
  public int run(String[] args) throws Exception {
    Configuration conf = this.getConf();
    Job job = Job.getInstance(conf, "word count");
    job.setJarByClass(WordCount.class);
    job.setInputFormatClass(TextInputFormat.class);

    job.setMapperClass(TokenizerMapper.class);
    job.setCombinerClass(IntSumReducer.class);
    job.setReducerClass(IntSumReducer.class);

    job.setOutputKeyClass(Text.class);
    job.setOutputValueClass(IntWritable.class);
    job.setOutputFormatClass(TextOutputFormat.class);
    TextInputFormat.addInputPath(job, new Path(args[0]));
    TextOutputFormat.setOutputPath(job, new Path(args[1]));

    return job.waitForCompletion(true) ? 0 : 1;
  } … }

MapReduce Anatomy


public class WordCount extends Configured implements Tool {
  ⋮
  public static void main(String[] args) throws Exception {
    int res = ToolRunner.run(new Configuration(), new WordCount(),
        args);
    System.exit(res);
  }
}

Hadoop MapReduce Details

There are a bunch of moving pieces in a Hadoop MapReduce job to make this work

InputFormat: Get the data we need, split it up and process it into key/value pairs for the Mapper.
Mapper: Processes each key/value input pair. Output key/value pairs to…
Combiner: An instance of Reducer that works as part of the mapper process.

Hadoop MapReduce Details

Partitioner: Which keys go to which reducer? Default usually okay.
Reducer: Take a key and an iterable of values: combine all of the values for the key and output result key/value pairs. Can also be plugged in as a combiner.
OutputFormat: Output the key/values from the reducer to… wherever it goes.

Summary Output

A MapReduce task produces some summary stats at the bottom of its output. e.g. WordCount running on the wordcount-2 data set and with -D mapreduce.job.reduces=3:


    ⋮
	File System Counters
		FILE: Number of bytes read=92807462
		FILE: Number of bytes written=82173142
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
		⋮

Summary Output

    ⋮
	Map-Reduce Framework
		Map input records=257115
		Map output records=2136725
		Map output bytes=20178489
		Map output materialized bytes=3469320
		Input split bytes=2307
		Combine input records=2136725
		Combine output records=242404
		Reduce input groups=124601
		Reduce shuffle bytes=3469320
		Reduce input records=242404
		Reduce output records=124601
		Spilled Records=484808
		Shuffled Maps =57
		Failed Shuffles=0
		Merged Map outputs=57
		GC time elapsed (ms)=31
		Total committed heap usage (bytes)=15070134272
    ⋮

Summary Output

    ⋮
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Input Format Counters
		Bytes Read=4254260
	File Output Format Counters
		Bytes Written=1399398

MapReduce Parallelism

The goal of all of this structure is to do work in parallel across all of the cores available.

The InputFormat decides how to split the input, and thus how many map processes there will be.

YARN is responsible for running the map tasks: it does this in parallel as much as possible, and tries to run them locally to the inputs.

MapReduce Parallelism

With the TextInputFormat we have been using:

Every file goes to at least one separate mapper.
If the file is uncompressed (or uses a splittable compression method) and large enough, it will be split to multiple map tasks.

MapReduce Parallelism

Each mapper can do its job in parallel, and send its output to the shuffle. If the amount of parallelism isn't right for the problem/cluster, then things are going to be slow.

Too few parallel tasks: few cores used.

Too many tasks: they get queued and the overhead of starting/stopping them dominates.

MapReduce Parallelism

How can you change the number of mappers to make it right?

Option 1: override the InputFormat to change the way the input is split.

Option 2: fiddle with the input files to make the size/number you want.

I would almost certainly choose 2. Fix your input, then start working with it. (And similar advice with Spark.)

MapReduce Parallelism

We had to explicitly set the number of reducers: there's nothing the framework can do to guess the correct number.

The Partitioner decides which key goes to which reducer.

Then each reducer can work in parallel and produces a separate output file. Again, YARN runs them.

Writables

All of the keys and values we have been using are wrapped in a Writable implementation.

Basically, the Writable implementations know how to (efficiently) serialize/deserialize their wrapped type for passing around the cluster.

The WritableComparable adds the ability to compare (for the shuffle).

Writables

Hadoop includes implementations for basic Java types:

int → IntWritable
long → LongWritable
float → FloatWritable
double → DoubleWritable
boolean → BooleanWritable
String → Text (should have been called StringWritable but it wasn't)

Writables

Implementing your own Writable (or WritableComparable) is easy if you have a more complex key or value.

e.g. the LongPairWritable from Assignment 1.

Example: word count

InputFormat: the default TextInputFormat splits files into lines (with byte-offset as key): (241, "one text line").
Mapper: Break the line up into words, and count one occurrence of each: ("one", 1), ("text", 1), ("line", 1).
Combiner: Sum the values for each word on this node: ("line", 3), ("one", 32), ("text", 2).

Example: word count

Shuffle: Move equal keys to same reducer, as decided by HashPartitioner.
Reducer: Sum the values for each word: ("line", 12), ("one", 76), ("text", 6).
OutputFormat: the default TextOutputFormat outputs tab-separated keys and values:
```
line   12
one    76
text   6
```

About MapReduce

Many problems can be expressed as a MapReduce task (or maybe multiple chained MapReduce tasks).

… but it's a little limiting. We'll see more flexibility in Spark.

MapReduce: One more way

[* meaning zero-or-more]

InputFormat: input → (k1, v1)*
Mapper: (k1, v1) → (k2, v2)*
Combiner: (k2, iterable(v2)) → (k2, v2)*
Shuffle: move (k2, v2) to get equal k2 together (RawComparator decides what “equal” means)
Reducer: (k2, iterable(v2)) → (k3, v3)*
OutputFormat: (k3, v3) → output

MapReduce Data Flow

* *
